Description
Bevel seat fittings are threaded Stainless Steel Sanitary connections that ensure rigid, crevice -free sealing in High pressure process lines. They consist of three components: a Threaded Ferrule, a Plain Ferrule and a Union Hex Nut that draws the angled edges together for a tight seal.
- KEY FEATURES AND SPECIFICATIONS

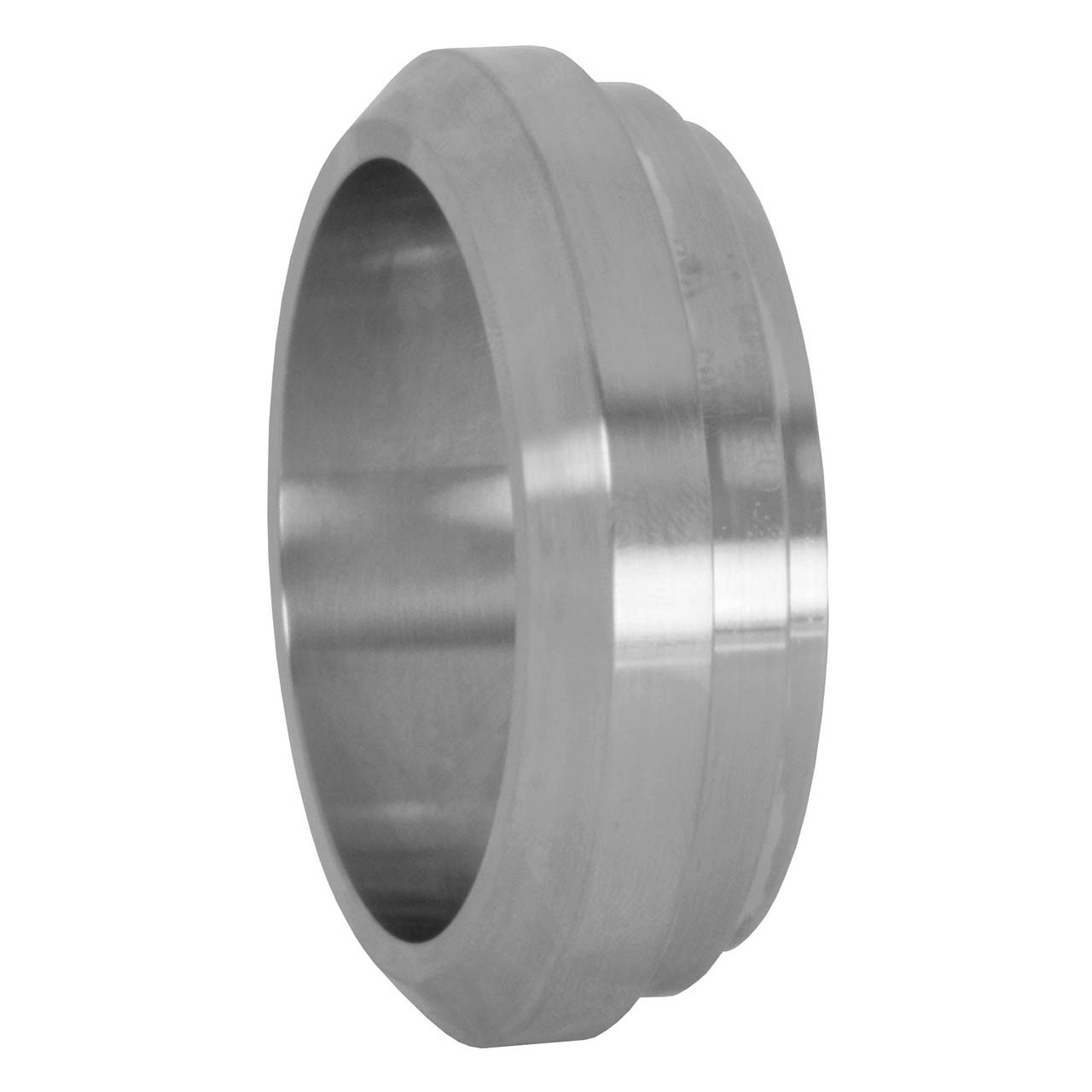

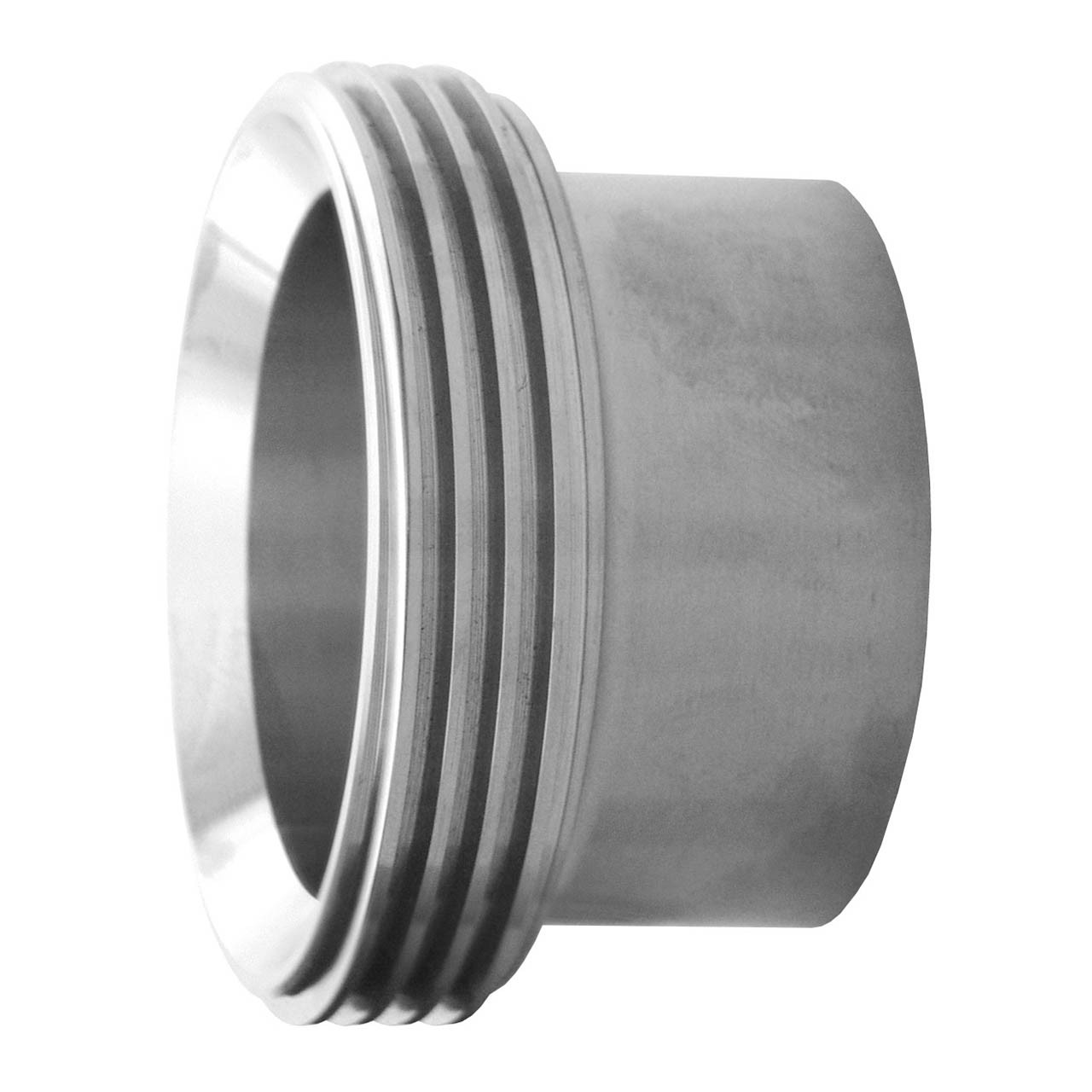

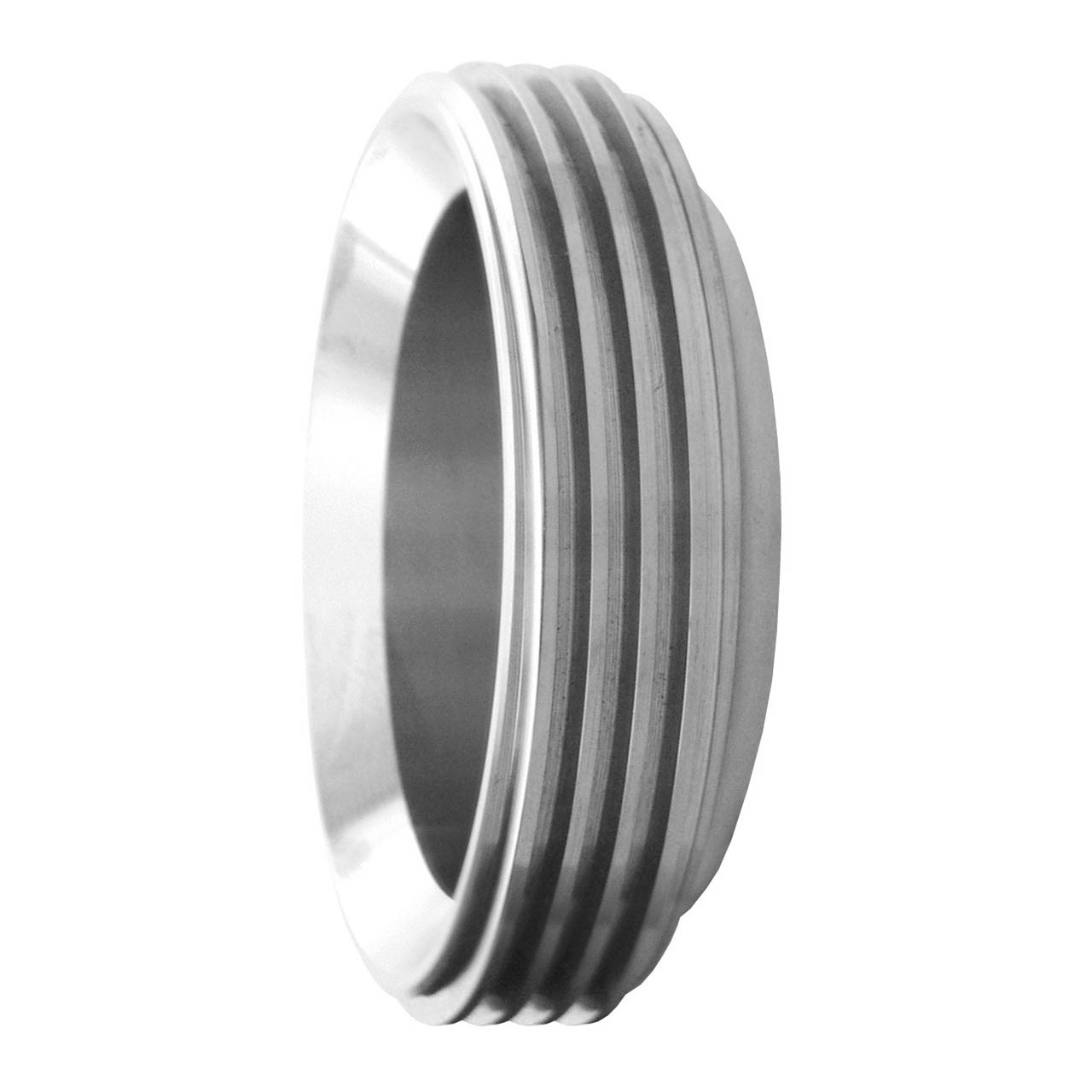

Components: A threaded bevel ferrule and a plain bevel ferrule are welded to tubing. A HEX Union Nut fits over the Plain FERRULE AND screws onto the threaded FeRRULE to secure the connection.
Materials: Commonly manufactured in 304 or 316 Stainless Steel allowing them to resist corrosion from harsh cleaners, acids and process fluids.
Gaskets: While these fittings can create a secure metal to metal seal they often utilize optional bevel seat gaskets to prevent metal to metal contacting further optimize hygienic performance.
Size & Pressure: Available in sizes ranging from 1″ to 4″ in diameter. A standard 4″ fitting can withstand pressures up to 100 psi
Standards: Designed with smooth , crevice-free surfaces that meet 3-A Sanitary Standards and FDA Requirements heavily minimizing the risk of Bacterial buildup.
Primary Applications: Because they are highly secure and designed to endure both pressure and vibration, bevel seat unions are classic technology frequently utilized in systems requiring frequent, easy disassembly. They are standard components in Dairy Processing,Food, Beverage, Brewing, Pharmaceutical and Biotech Manufacturing.
