Description

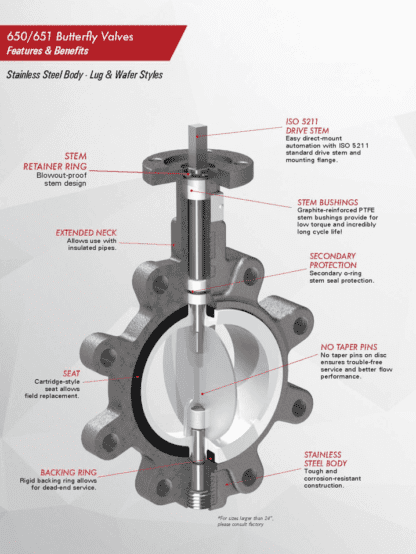

Tru-Flo Series 650 & 651 Stainless Steel Butterfly Valves in Lug & Wafer styles are a very high-quality Stainless Steel Butterfly Valve. All exposed components are Stainless Steel with an ISO 5211 top mounting flange and 150 psi bi-directional rating. Connection flanges conform to ANSI Class 150 standards and have no tapered pins for maximum durability. There are many other options available than those listed here. Please call R&S Supply Company at (800)439-6909 for actuation, disc, seat & size options. We have listed sizes 2″ through 6″ here with a stainless steel lever operator. Sizes 8″ through 24″ are available upon request with many different seat compound options as well.
Features & Specifications
- 316 Stainless Steel Disc has a mirror polish
- Variety of disc and seal materials are available
- Conforms to MSS-SP-67, MSS-SP-25, API-609
- Designed for blowout proof service
- High Cv slim disc design
- Easily field repairable
